Audio step for earphone (CB20560E)

Details: Written by: Newton C. Braga

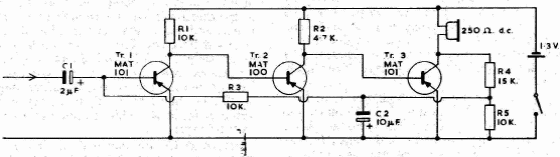

This 3-transistor amplifier stage was found in documentation from 1963. The transistors are made of germanium and the listening is done in a 250-ohm headphone.
