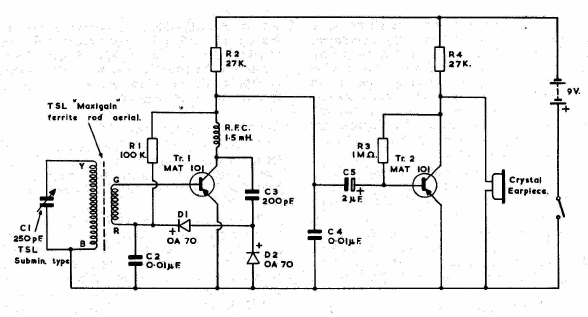

This reflex receiver was obtained from a 1963 documentation. The transistors are germanium, and the coil was commercially available at the time.
![](/images/sampledata/cir/CB20566E61_0001.gif)
This reflex receiver was obtained from a 1963 documentation. The transistors are germanium, and the coil was commercially available at the time.
