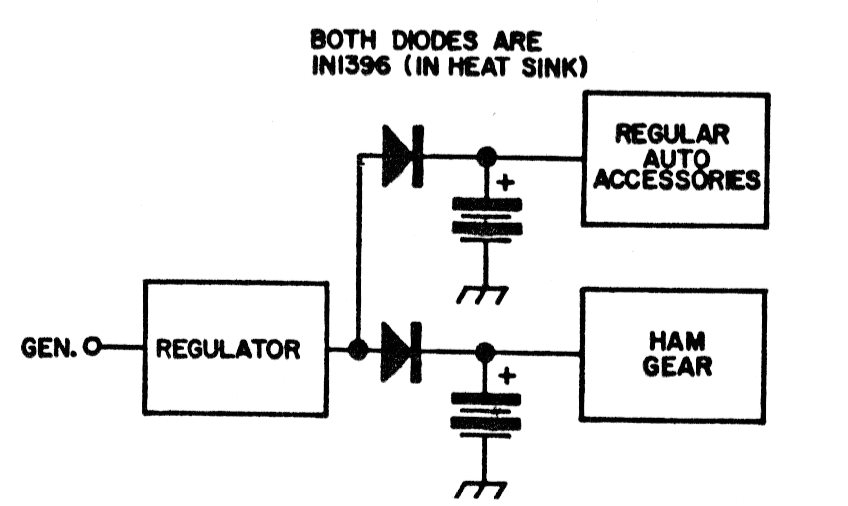

This circuit was found in an American telecommunications documentation from the 1980s. The circuit shows how to use two batteries in a car, one for the telecommunications system (amateur) and one for the rest of the circuit. The circuit allows the car's regulator to charge both batteries at the same time.




| Clique na imagem para ampliar |
