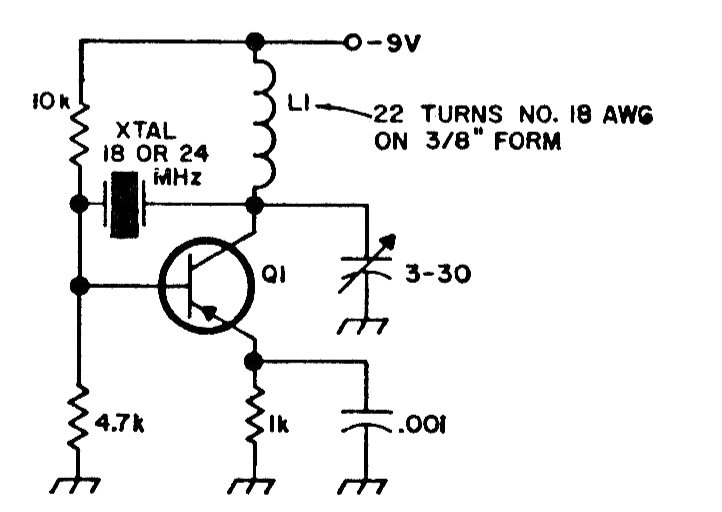

Using 18 or 24 MHz crystals, this circuit is intended for producing reference signals with harmonics up to a few hundred megahertz. We found it in a 1980s documentation. Transistors are high frequency types, and can be NPN if the power supply is reversed.
