Video driver (CB25354E)

Details
Written by: Newton C. Braga

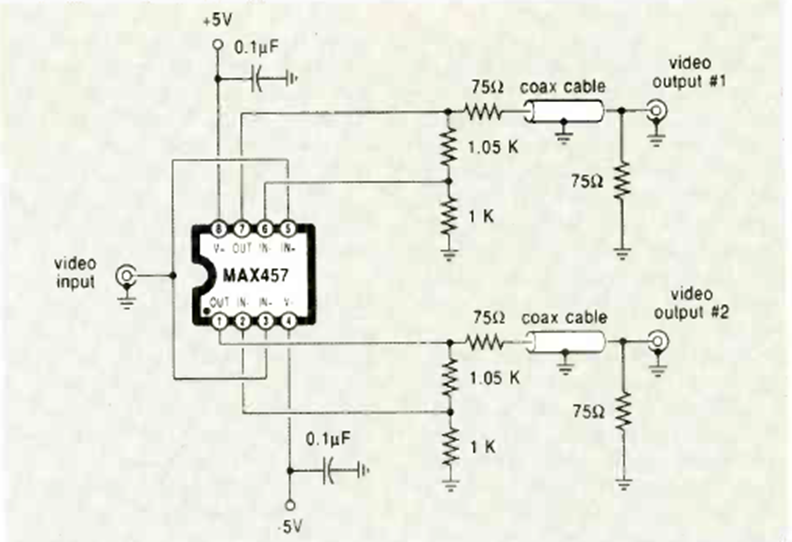

This circuit for analog video signals was found in the August 1970 issue of Radio Electronics magazine. The circuit is used to drive two video inputs from one signal.
