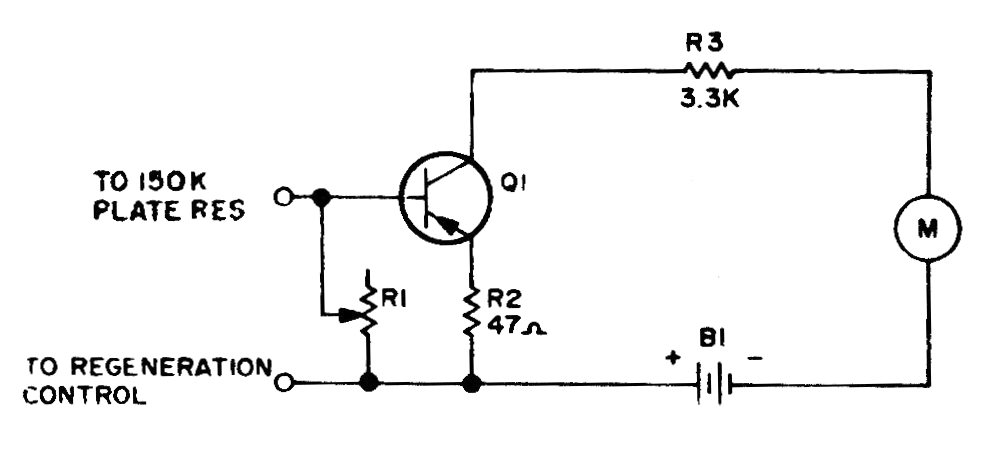

S-meter is a signal strength meter used in radio transmission. Also known as Strength meter, in this case a common milliammeter is used. The transistor is a general purpose PNP. The circuit is from a documentation for amateur radio of the 80s.
