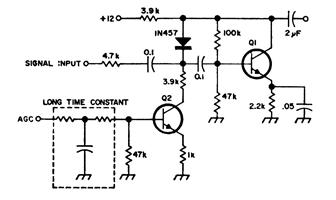

This circuit is intended for communications receivers. We can find it in a documentation from the 80's. The components are from the time, and the indicated transistors can be replaced by modern equivalents. The operation range reaches 60 dB.
