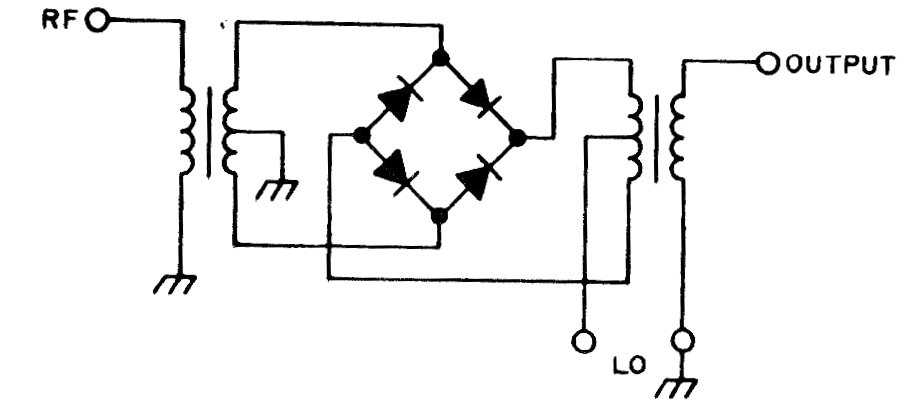

This dual balanced modulator configuration was obtained in a 1980s telecommunications documentation. The circuit makes use of transformers and the diodes are commonly used.
| Clique na imagem para ampliar |
This dual balanced modulator configuration was obtained in a 1980s telecommunications documentation. The circuit makes use of transformers and the diodes are commonly used.
