SIDAC Relaxation Oscillator (CB4243E)

Details: Written by: Newton C. Braga

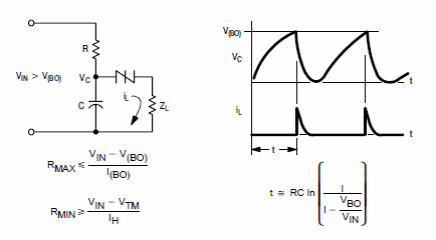

In the figure we have a typical relaxation oscillator with a SIDAC as well as waveforms and formulas for calculating the components. The circuit was found in an 80s manual from ON Semiconductor.
