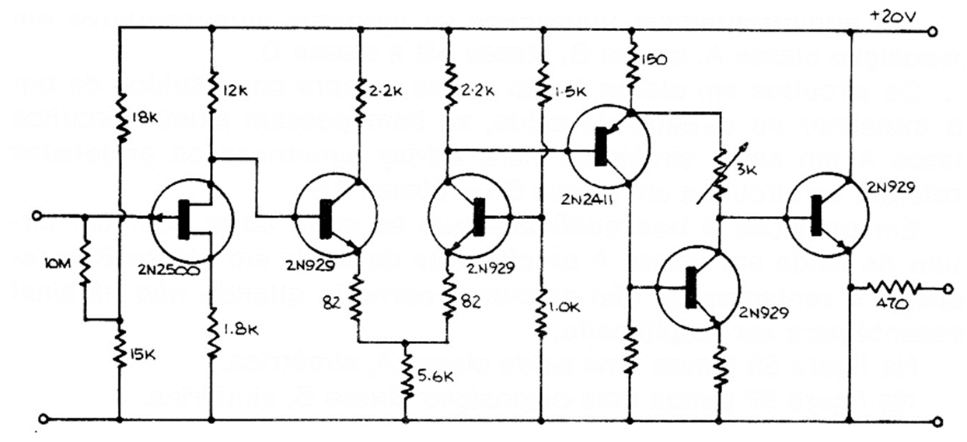

This high gain small signal amplifier circuit was found in an old publication on transistors. Transistors can be general purpose types and input FET BF245. The circuit has high input impedance and the supply voltage is relatively high.
