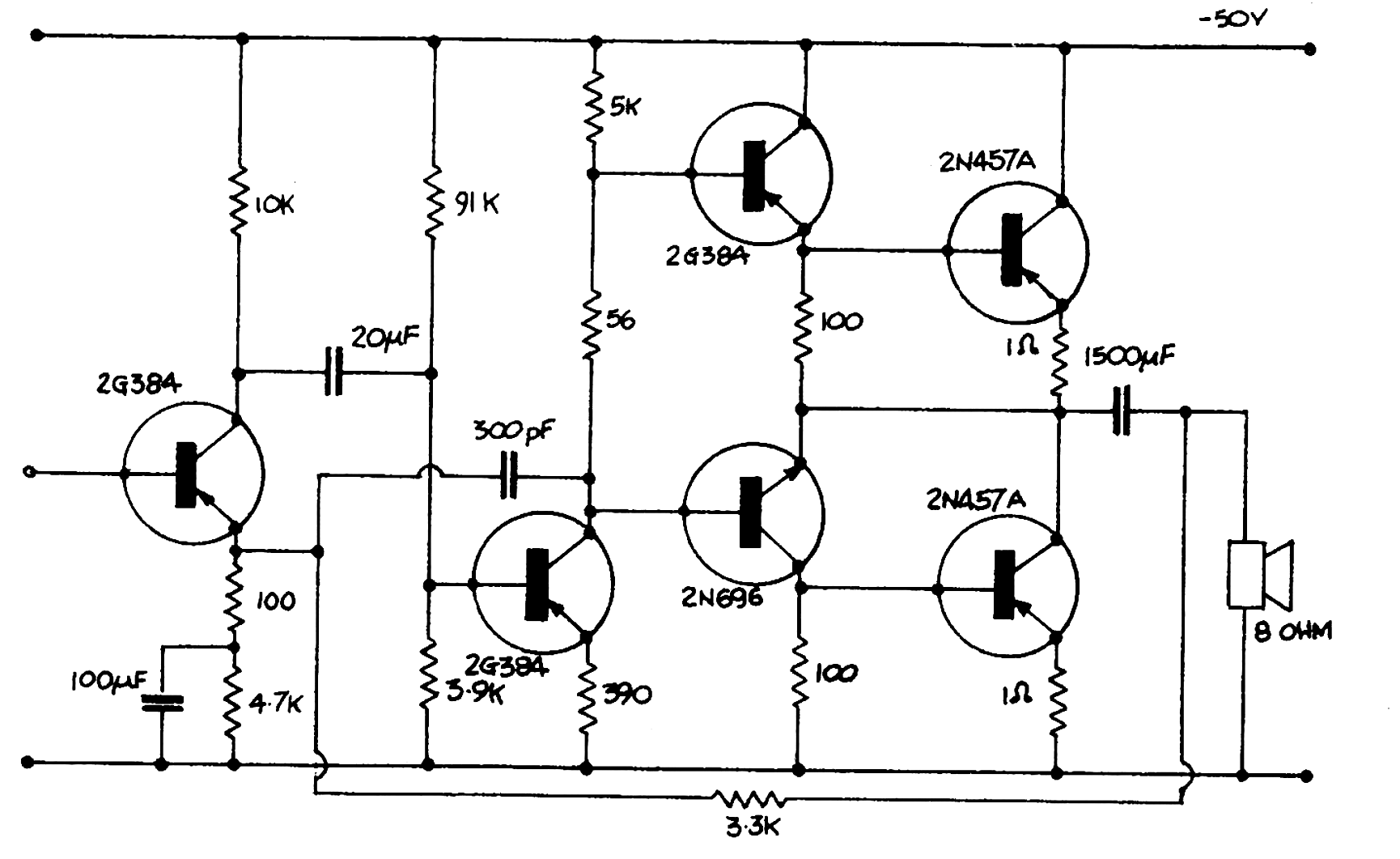

This amplifier with complementary output transistors delivers a 20 W load at 80 ohms. We find it in an 80's publication being the transistors types of the time. Transistors can be replaced by modern equivalents. Note the high voltage used in the power supply.
