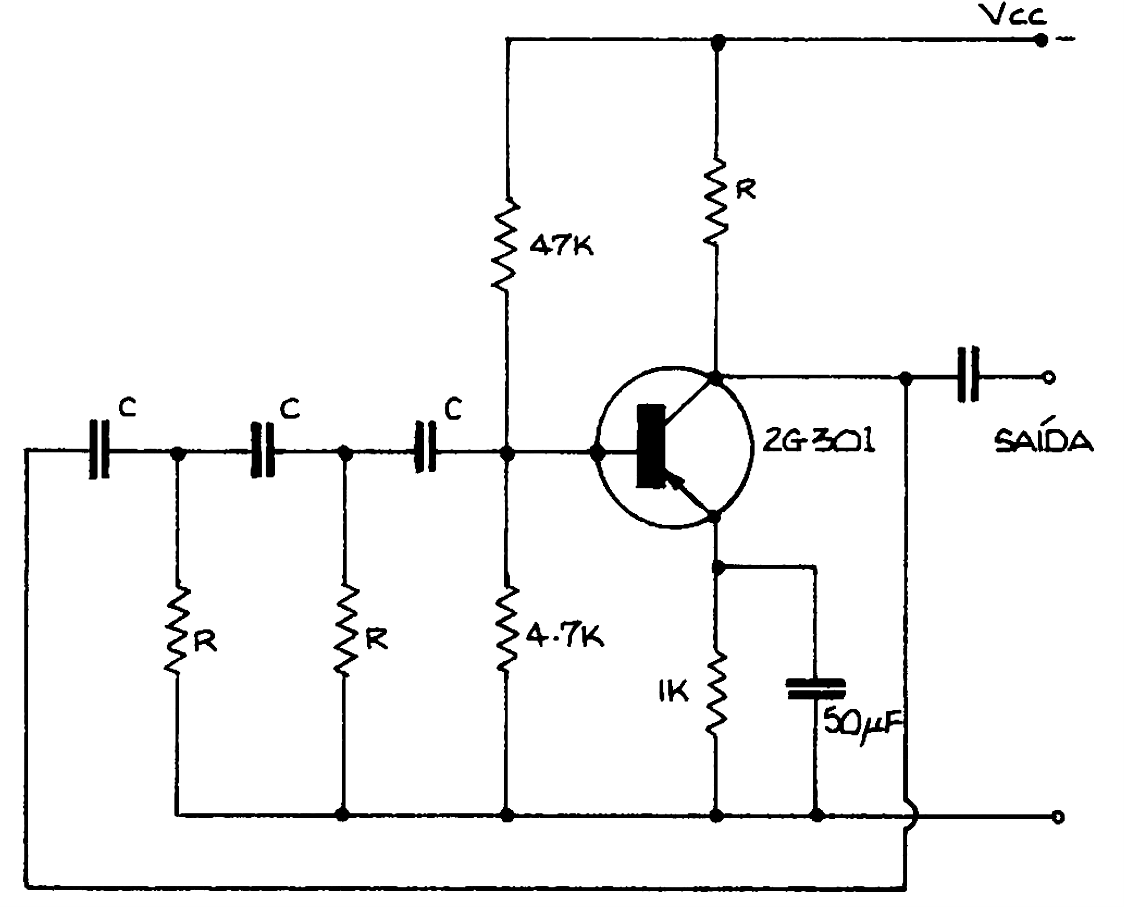

This is a typical RF oscillator configuration found in a 1980s documentation. The frequency depends on RC and typical values for these components are between 10k and 47k for resistors and 10 nF to 470 nF for capacitors. The supply voltage can typically be between 9 and 15 V.
