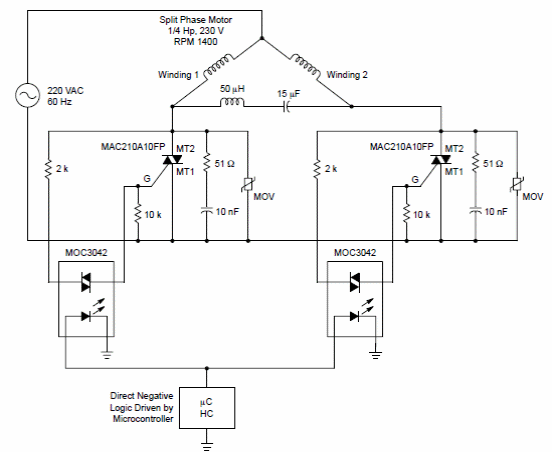

This circuit was found in the power semiconductor manual of the 1980s ON Semiconductor. The circuit is for a ¼ HP motor and can be used as a shield for microcontrollers. The components are of the time.
AC Motor Direction Control (CB4262E)
- Details
- Written by: Newton C. Braga
