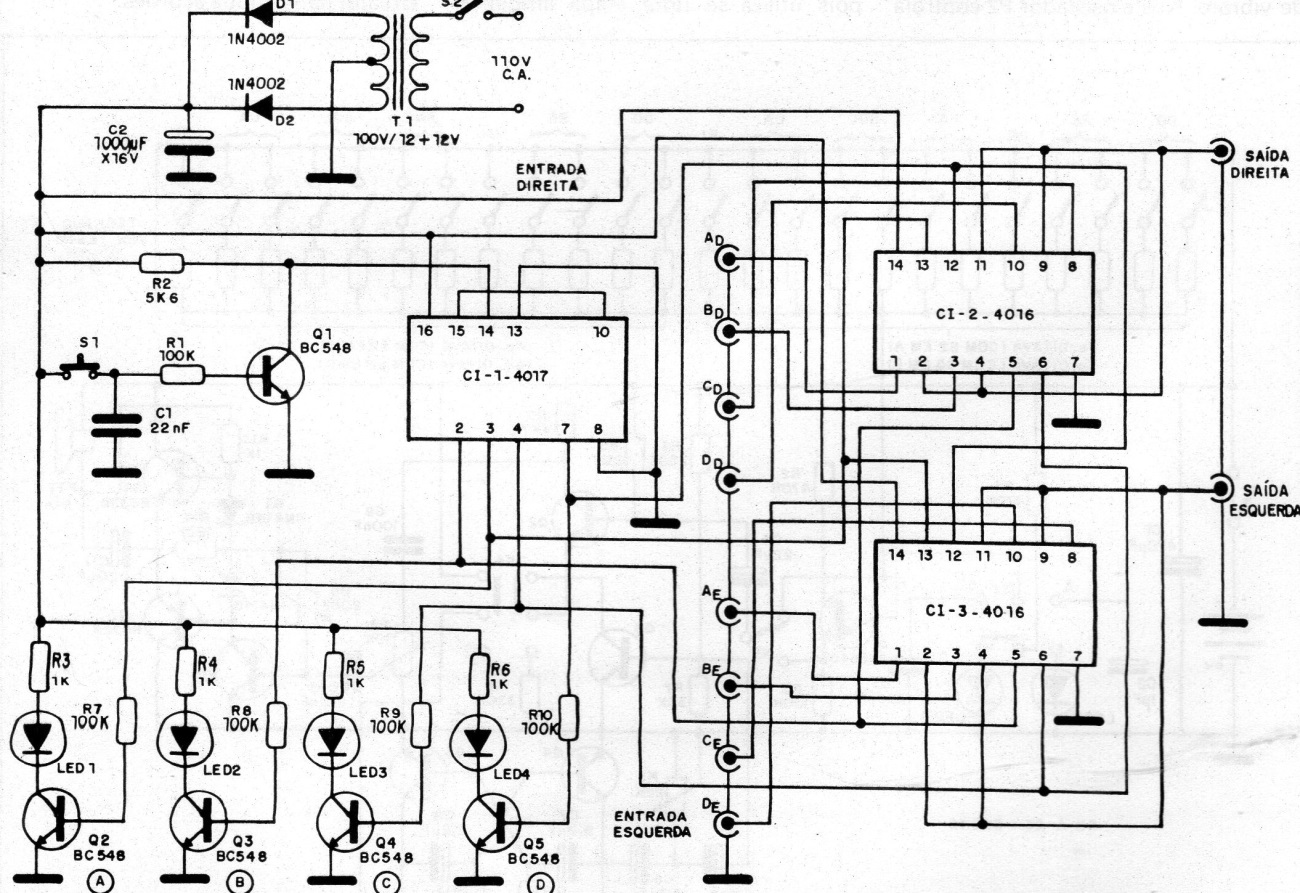

This circuit digitally selects the inputs of a sound system by applying its signals to the outputs. The selection is made by a pressure switch and there are indicator LEDs to know which inputs are selected. The circuit is old but can still be easily assembled by the components it uses.
| Clique na imagem para ampliar |
