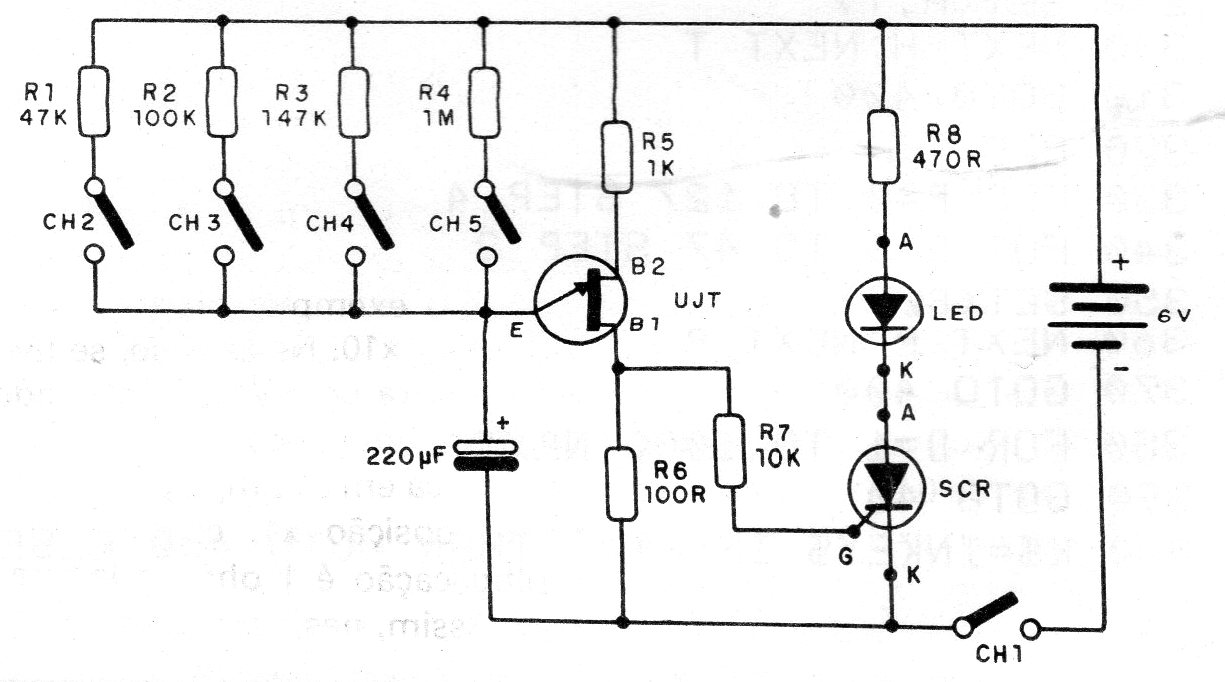

This 10, 25, 45 second and 5 minute timer has its times selected by the switches. The circuit triggers LEDs, but increasing the supply voltage to 9 V can activate a 6 V relay, considering the 2 V drop in the SCR. Larger intervals may also be obtained with increasing capacitor.
| Clique na imagem para ampliar |
