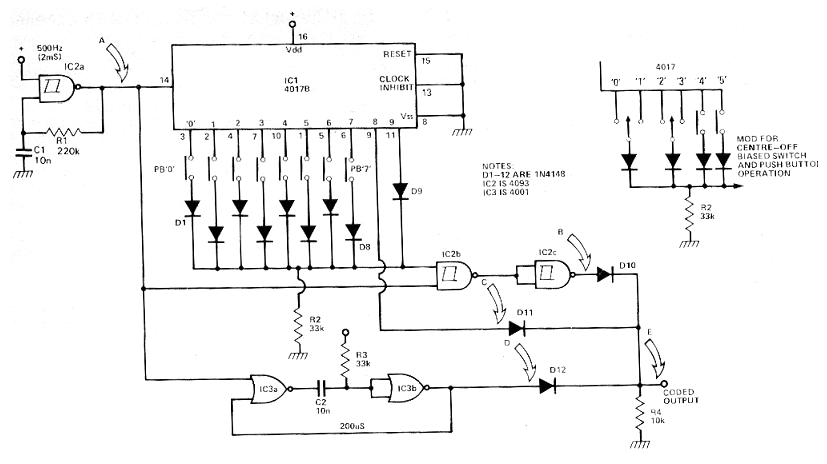

This circuit was obtained from an English magazine from 1979, but can be easily assembled today because all components are common. What the circuit does is generate coded pulses for an 8-channel remote control system. See CB4528E and CB4529E.
| Clique na imagem para ampliar |
