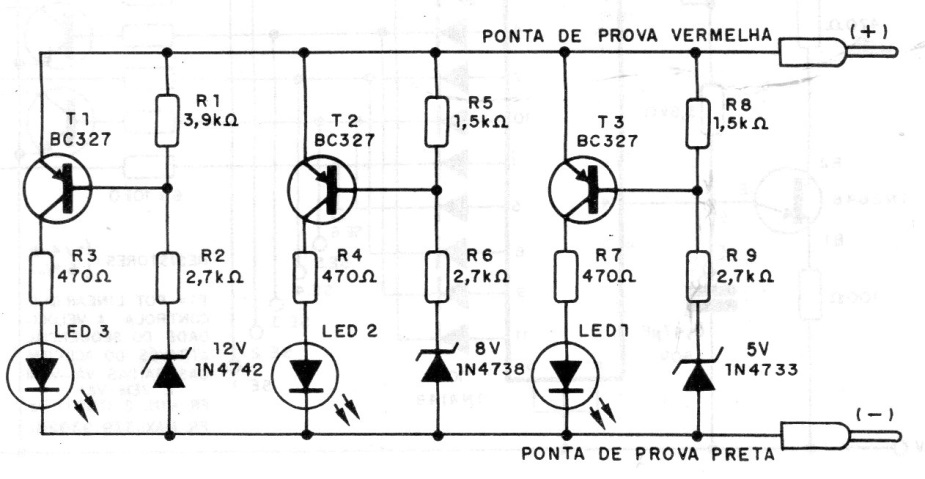

This circuit has appeared on our site several times as a battery status monitor. In this application, found in a 1995 documentation, it is indicated as a simple battery test. The LEDs are red, yellow, and green for the three possible states of the battery under test.
