Isolation Transformer (CB25795E)

Details
Written by: Newton C. Braga

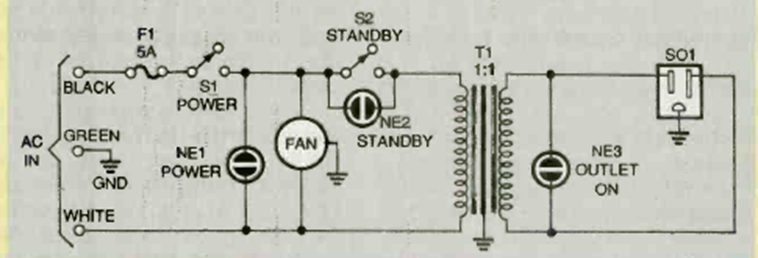

With a mains-rated transformer and 1:1 winding this benchtop circuit was found in the January 1995 issue of Electronics Now magazine.
