Battery Charger (CB4388E)

Details: Written by: Newton C. Braga

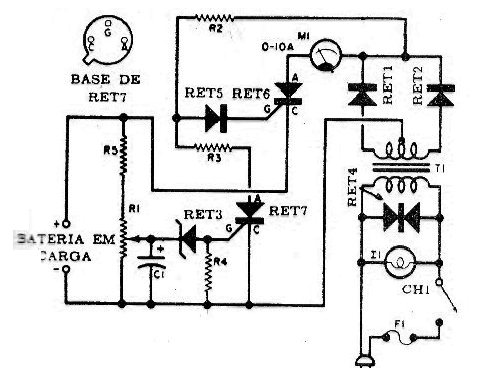

This circuit, obtained from a 1965 magazine, can still be assembled using some modern equivalent components. SCR can be TIC106 and modern equivalent diodes of same voltage and current.
