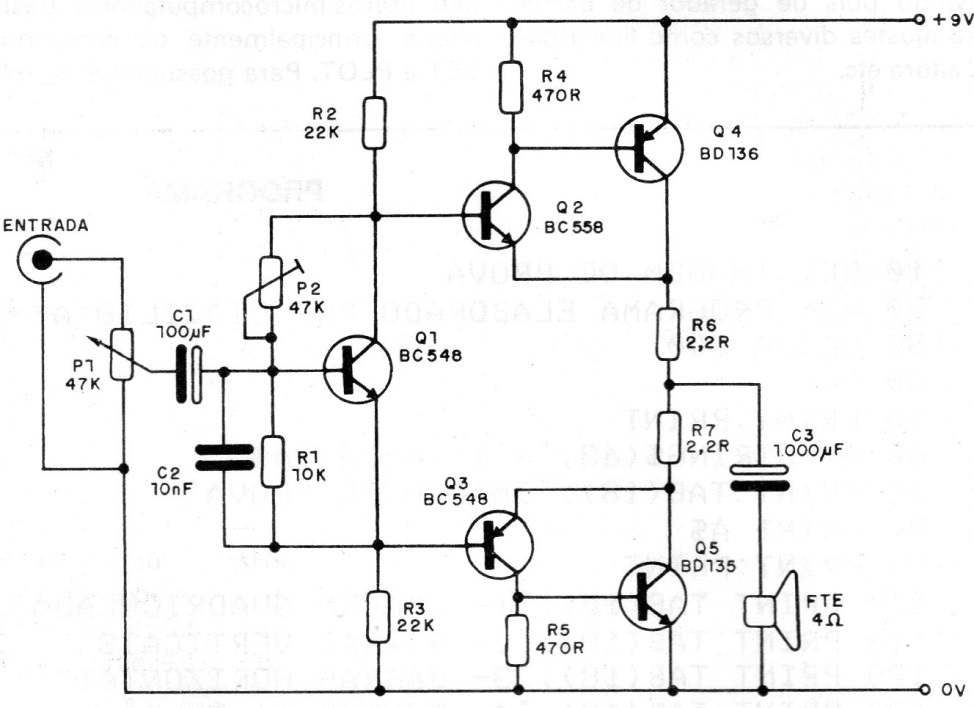

This is a traditional configuration of a transistor amplifier with complementary transistors that can be powered with 9 V and a current of at least 200 mA. Output transistors must be fitted with small heat sinks. The sound quality is very good.
