Sound-activated relay (CB7087E)

Details
Written by: Newton C. Braga

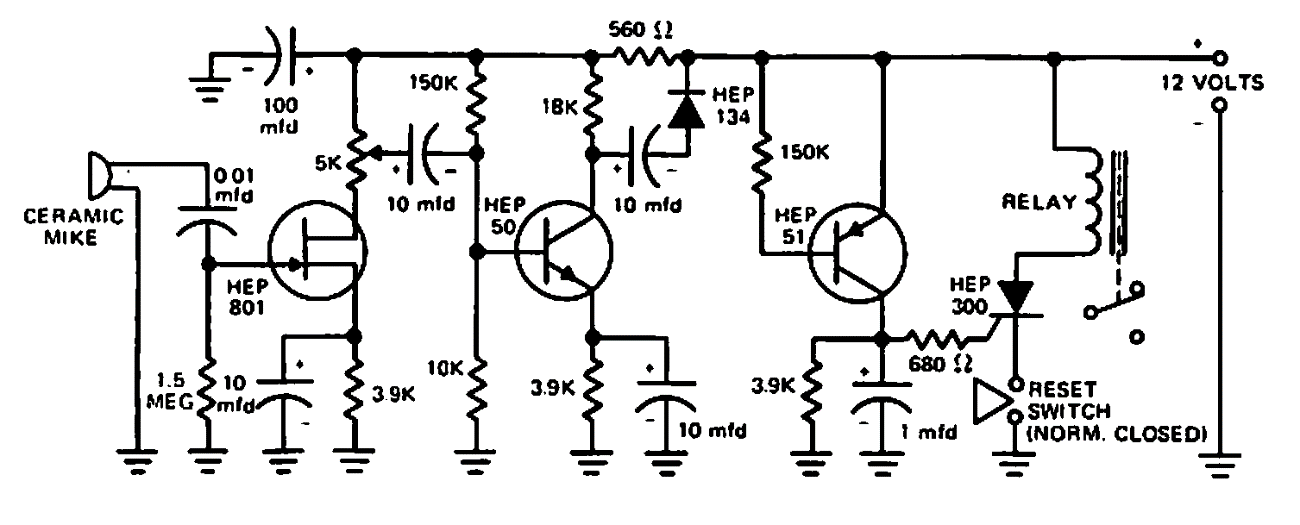

     We found this Vox in a 1969 Motorola documentation. Transistors support modern equivalents and the SCR can be a TIC106. The reset is done by a push button.




| Clique na imagem para ampliar |
