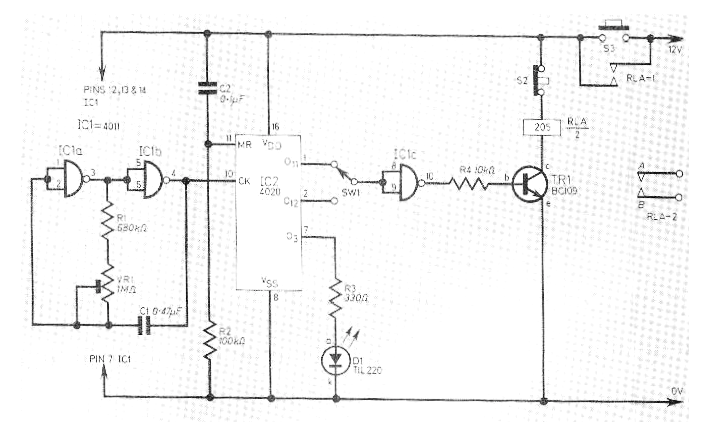

I found this simple circuit an English magazine from 1984. The circuit can be easily assembled by simply using a BC548 instead of the original BC108. The circuit produces 40 and 80 minute timings selected by a switch. The relay should be 6 or 12 V depending on the power supply, as only 12 V is recommended in the original.
| Clique na imagem para ampliar |
