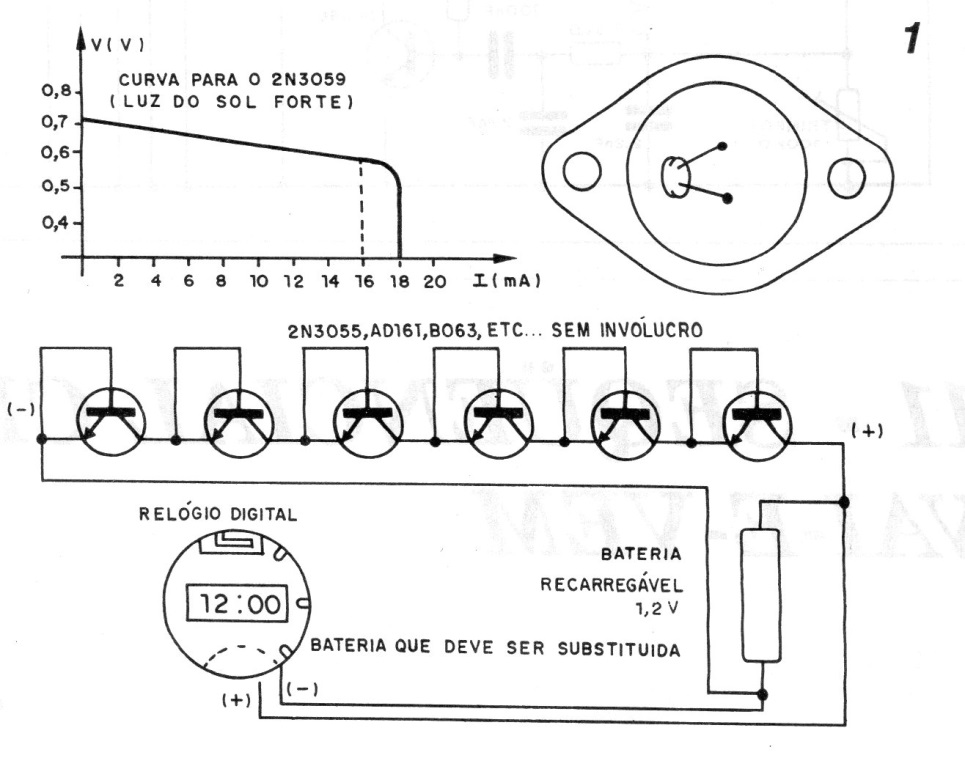

As we have explored on this site many times, a 2N3055 without the cover works like a low yield solar cell. However, as suggested in this circuit, connecting several of them in series can provide voltage to power a low-power, liquid-crystal watch module, the kind that uses a button cell, as shown in the figure.




| Clique na imagem para ampliar |
