BTL Amplifier TDA2020 (CB4358E)

Details
Written by: Newton C. Braga

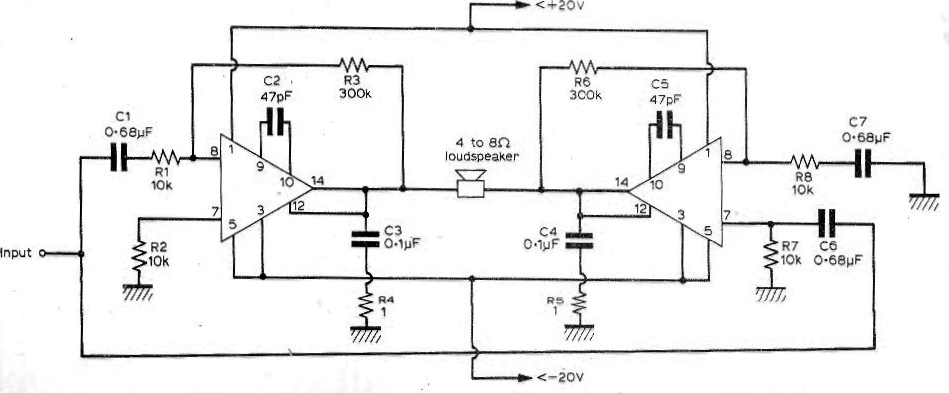

This integrated amplifier was found in a non-existent British magazine from 1975. The used integrated circuit is still popular and the mono bridged version can provide 36 W output power. 4 A.
