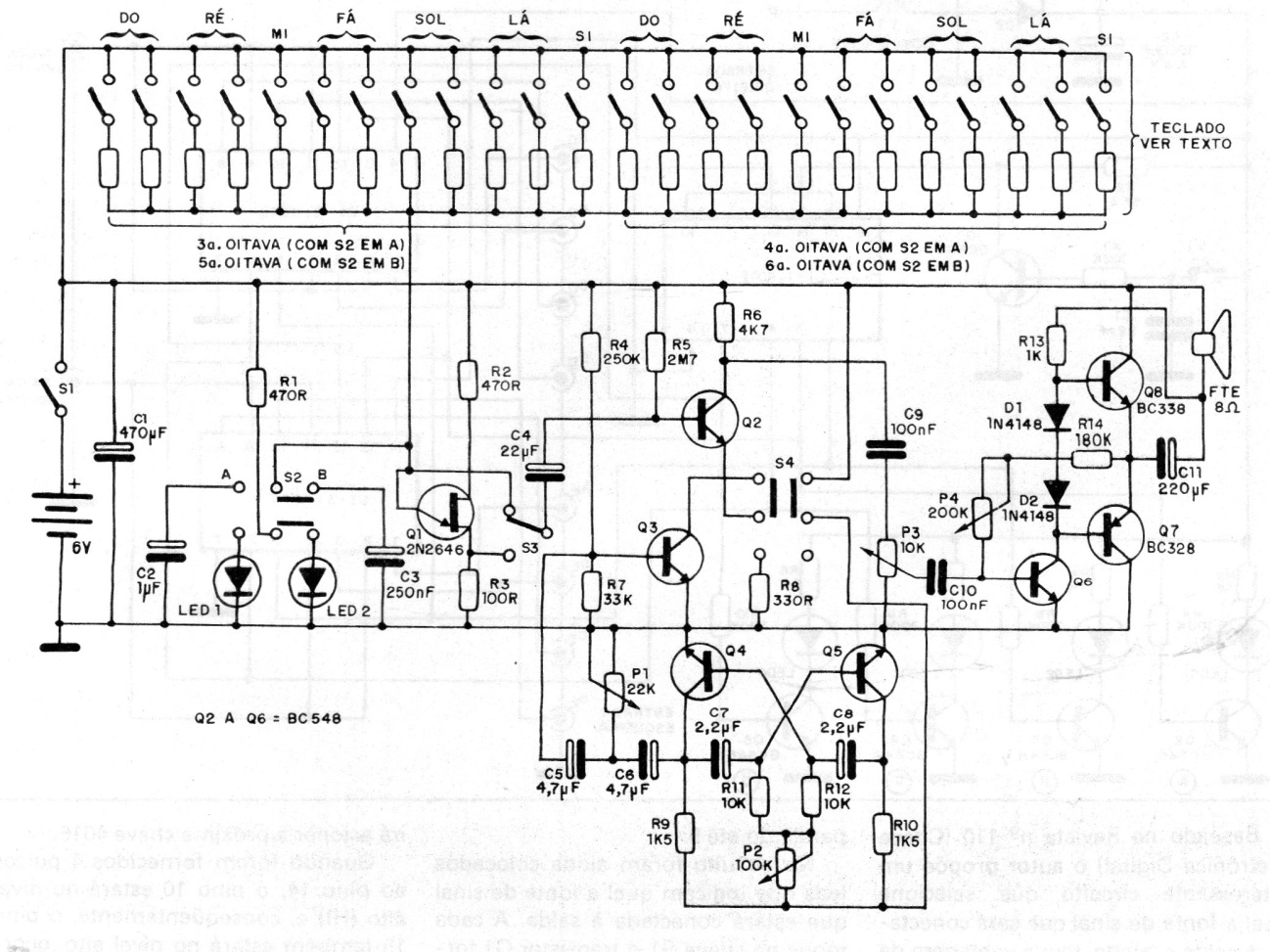

This circuit, which uses only common transistors, was obtained from a 1988 publication, but can be easily assembled even today. The circuit has the notes determined by the resistors that next to the keys that can be replaced by 100k or 220k trimpots for individual adjustment. The circuit is battery powered and already has a low power amplifier.
