Passaje Alarm

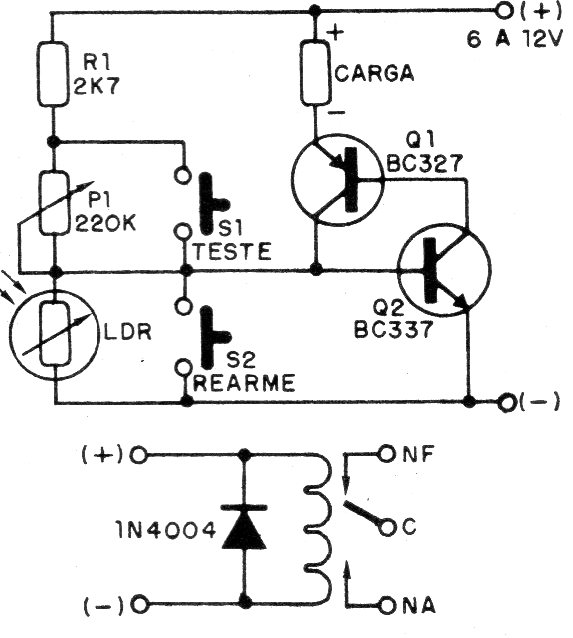

     This locking circuit was found in a 1988 publication. It locks a relay when the light beam striking the sensor is cut off. To rearm, simply press S2. S1 is for testing. Sensitivity adjustment is done in a trimpot. Power must be supplied with voltage according to the relay used.
