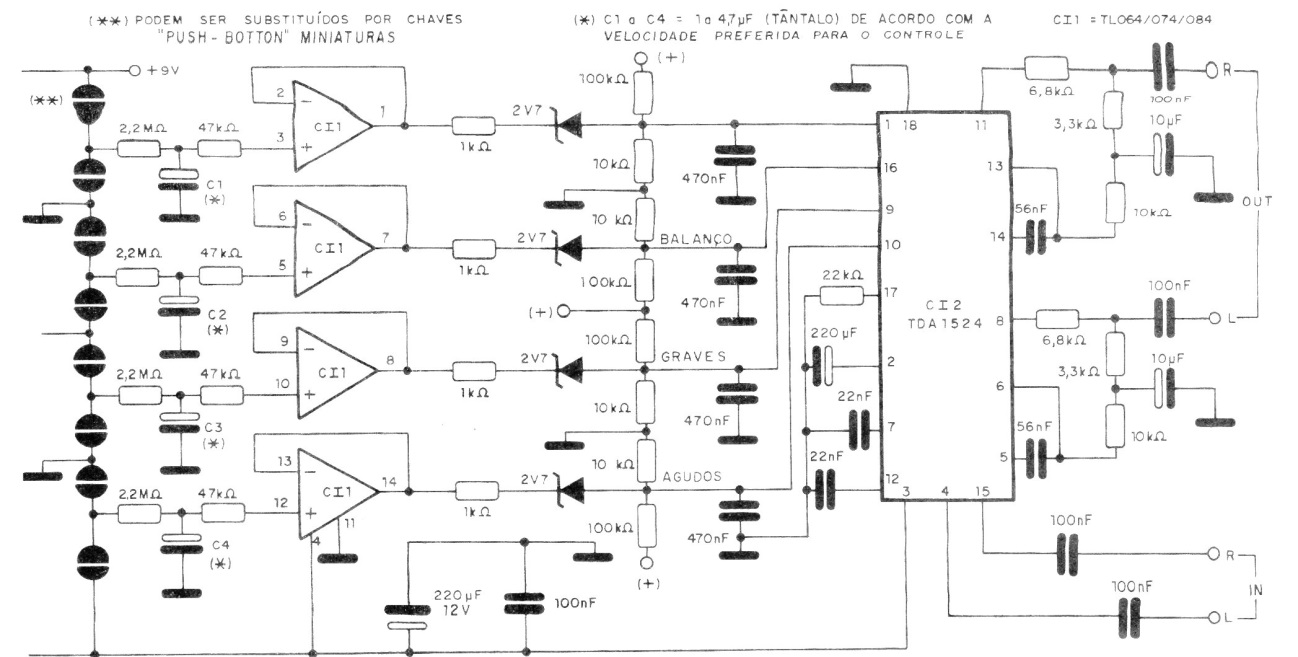

This circuit is from 1995 documentation. Integrated circuits are used which can still be found with some ease. The 9 to 12 V power supply must be isolated. Never use power supply without transformer. Audio cables must be shielded.




| Clique na imagem para ampliar |







Datasheets


N° of component
