Micropower Clock (CB6504E)

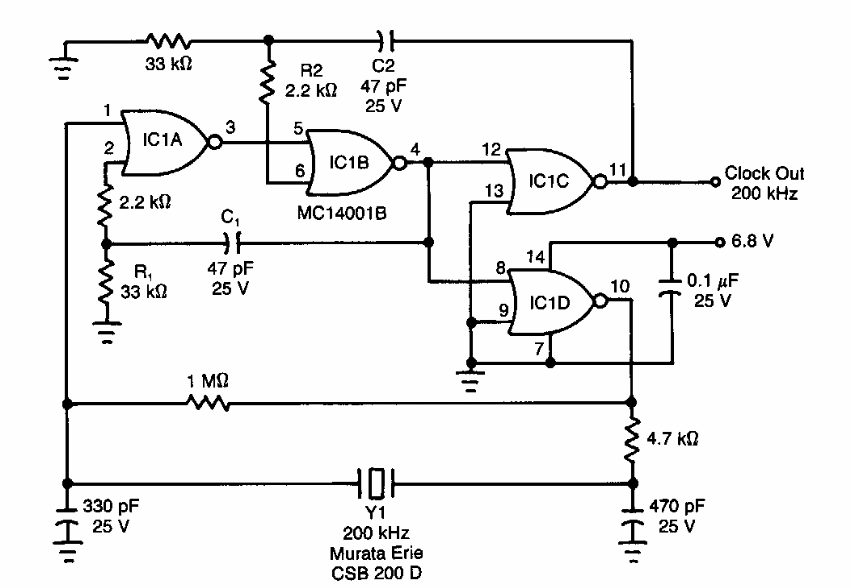

This 200 kHz oscillator was found on a 90's EDN. It consumes only 2.8 mW and has CMOS compatible output. CMOS power pins are not indicated.

| Clique na imagem para ampliar |
