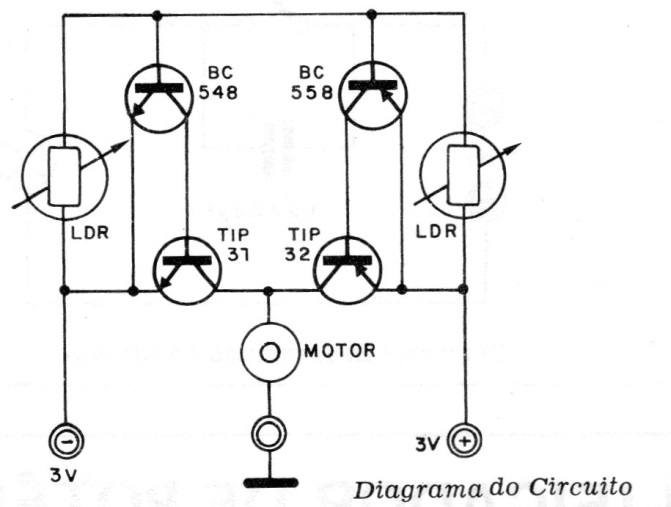

Using a symmetrical source this circuit reverses the rotation of a small motor through light control. LDRs should be installed in lens tubes and power transistors should be fitted with heat sinks. The circuit runs on 3 to 6 V motors and currents up to 1 A.
| Clique na imagem para ampliar |
