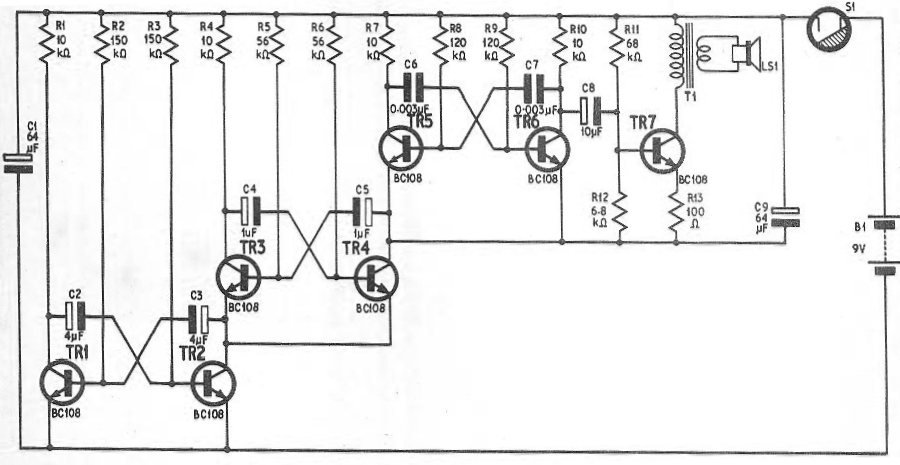

We discovered this circuit in an English magazine that no longer exists. The magazine is from December 1972, but the circuit can still be easily assembled by simply replacing all transistors with the BC548. Transformer T1 can be obtained from the audio output of an old transistorized radio. S1 is a mercury switch that turns on when the owl robot is tilted.
| Clique na imagem para ampliar |
