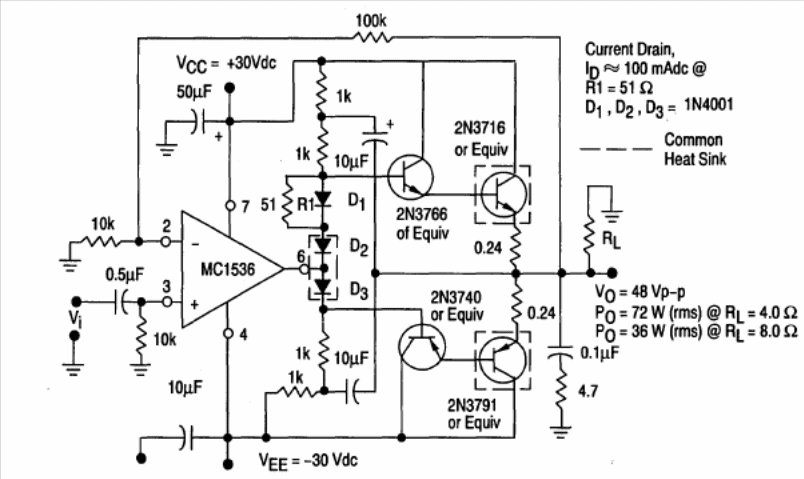

This circuit, found on Motorola's Linear Interface ICs uses the MC1536 as a driver for a 36 W or 72 W amplifier, with power transistors in the output stage. Equivalent transistors may be used and must be fitted with an excellent heat sink. The source is 30 + 30 V.
