High Impedance Differential Amplifier LM158 (CB4479E)

Details: Written by: Newton C. Braga

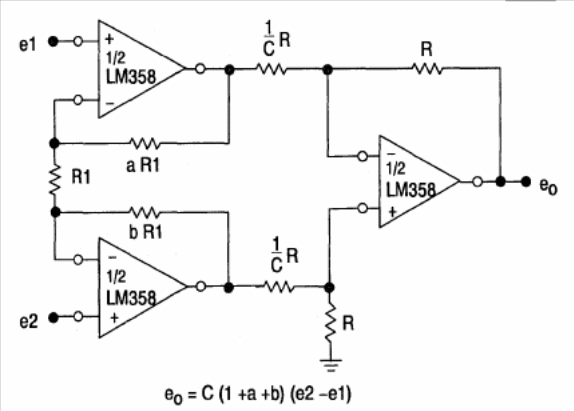

Three LM158, LM258, LM358, or LM2904 operational amplifiers are used in this instrumentation amplifier. The circuit is from the 1993 Motorola Linear Interface ICs. The circuit must be powered by symmetrical source.
