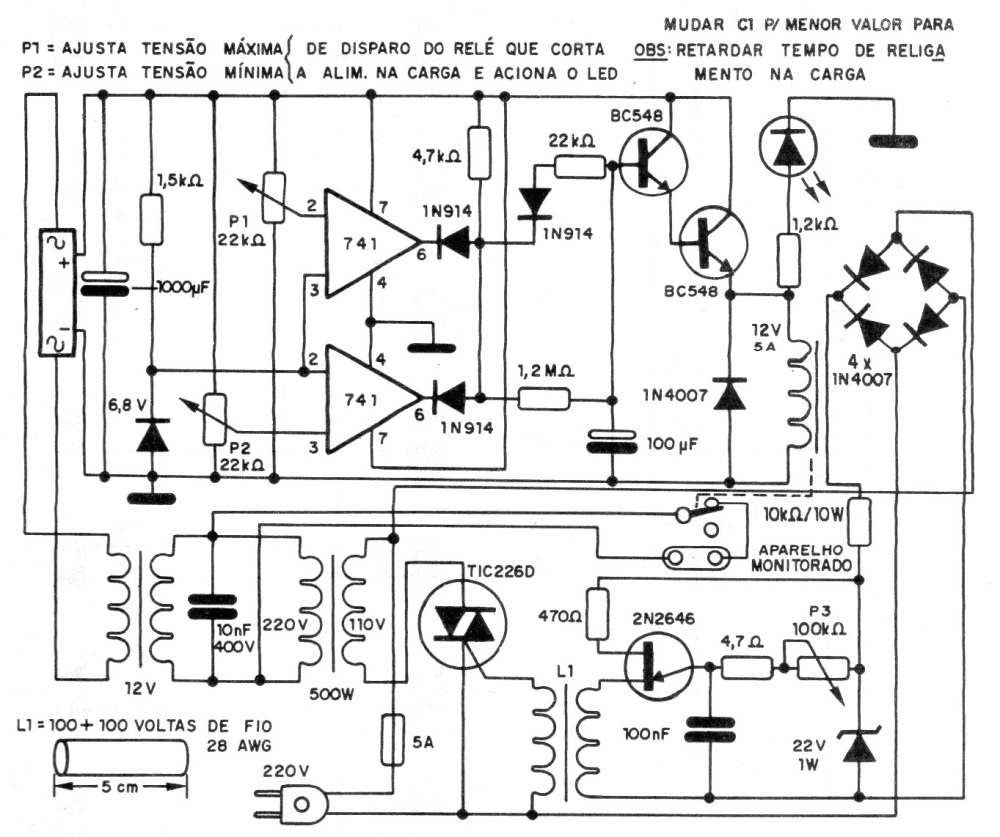

This circuit is from 1995 documentation. The power depends on the transformer, which in this case can reach 500 W. The triac must have a good heat sink. In the trimpots the voltage switching points are set in case of overvoltage and undervoltage.
| Clique na imagem para ampliar |
