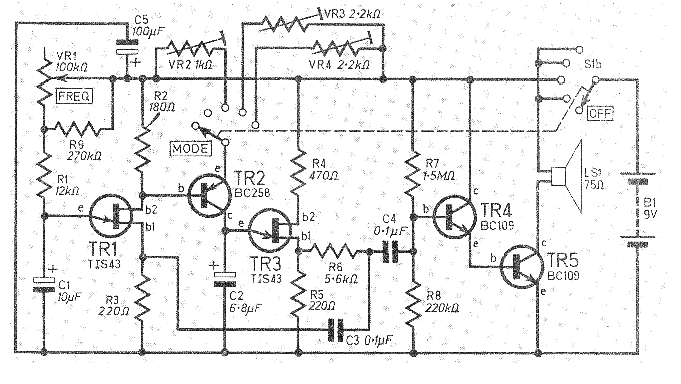

We found this circuit in an English magazine from 1976. The magazine no longer exists, but just swap TR1 and TR3 for 2N2646, TR2 for BC558, TR4 for BC548 and TR5 for BD135 that the circuit becomes current. The circuit produces a metronome tone with a sharp note.
