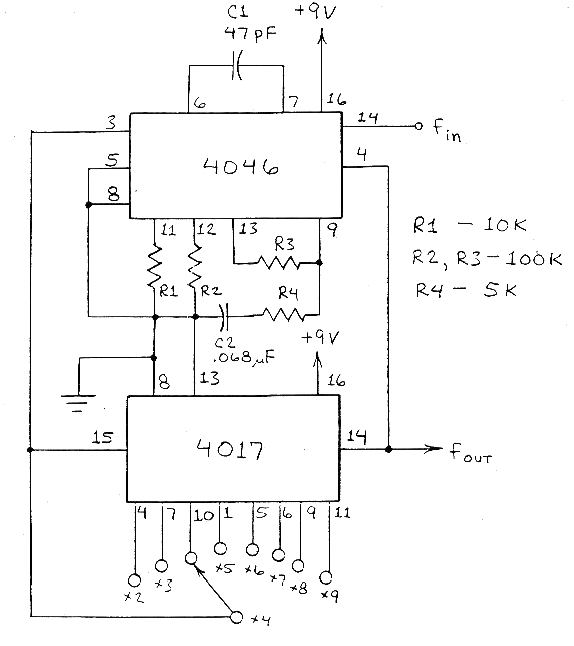

We found this circuit at Modern Electronics in January 1991. The magazine no longer exists, but the circuit can be easily assembled. The synthesized frequency is selected in 4017 and with the change of C1, other frequency ranges can be generated, up to the 4046 limit of some megahertz.
