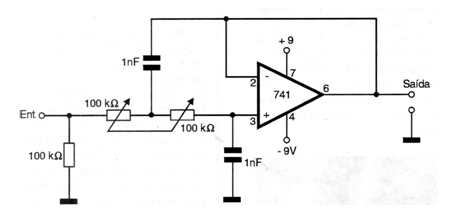

This circuit prevents the passage of frequencies in a range starting at 1 kHz and can be adjusted to a few dozen kHz through a double potentiometer. The input impedance is 100 k ohms and capacitors can be changed to modify their action. The power supply must be symmetrical and equivalent to the indicated operational amplifier can be experienced as per the application.
