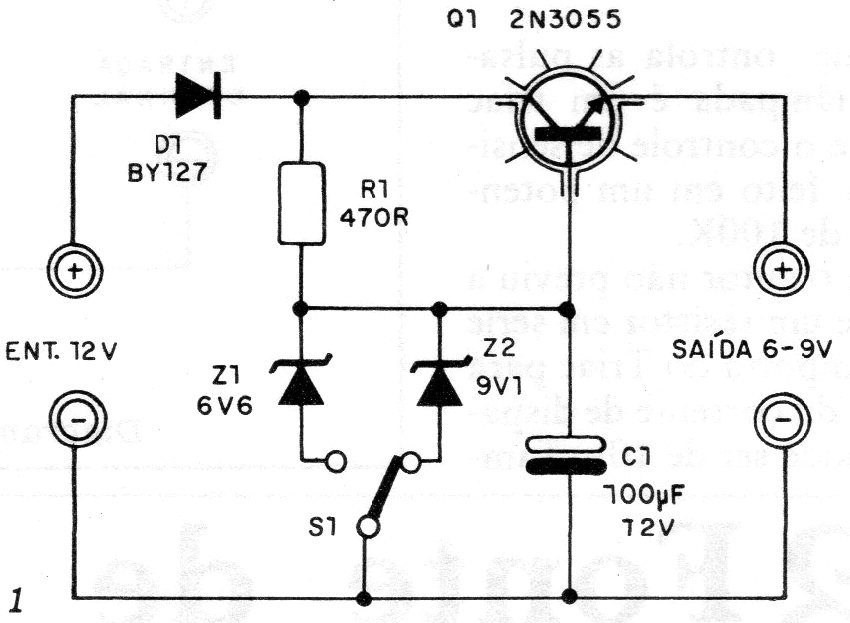

This circuit has a traditional configuration often found on this site. The transistor must be equipped with a heat sink and the maximum output current is of the order of 3 A. The voltage is selected by the zener diodes.
| Clique na imagem para ampliar |
