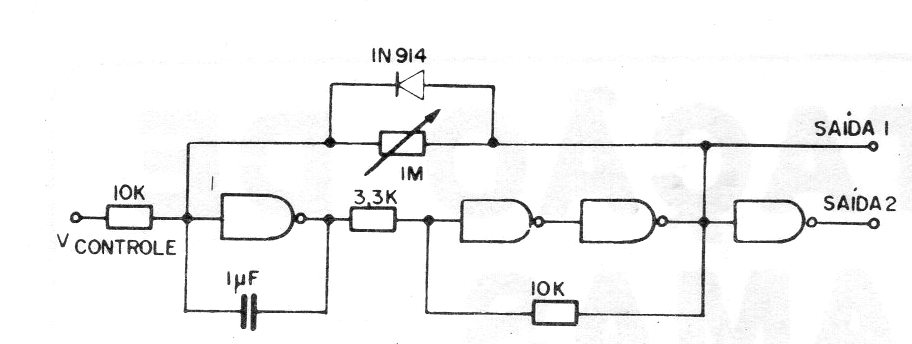

This circuit produces signals that depend on the input control voltage. It is a Voltage Controlled Oscillator. The circuit can be powered by 3 to 15 V voltages and the center frequency is determined by the capacitor and trimpot setting.
