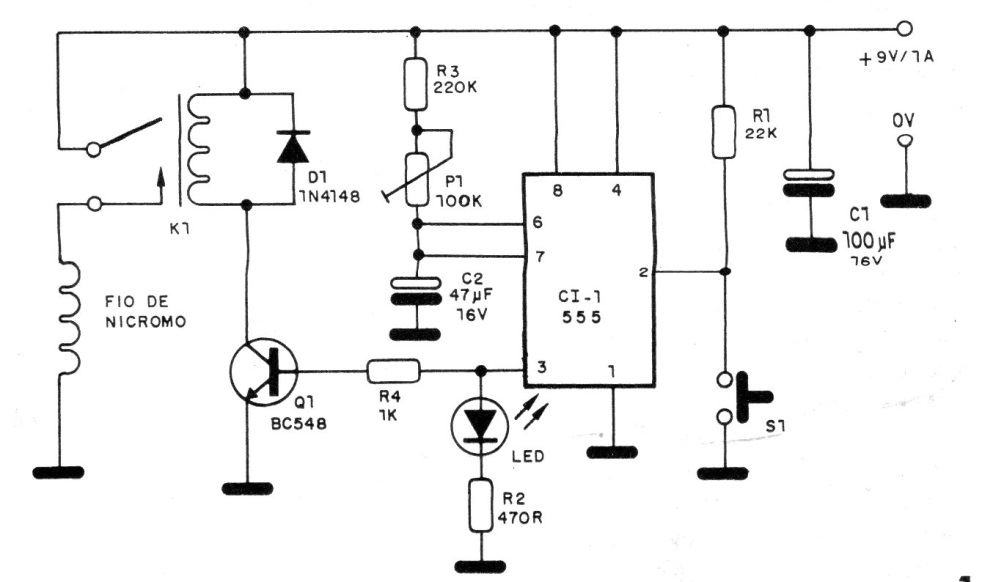

With a touch of S1 this circuit keeps a small strand of nichrome warm enough to light a cigarette. The circuit is from 1989 when there was not so much concern about smoking, which does not happen today. The circuit can be powered by a source or by large batteries given the required current.


| Clique na imagem para ampliar |





N° of component
