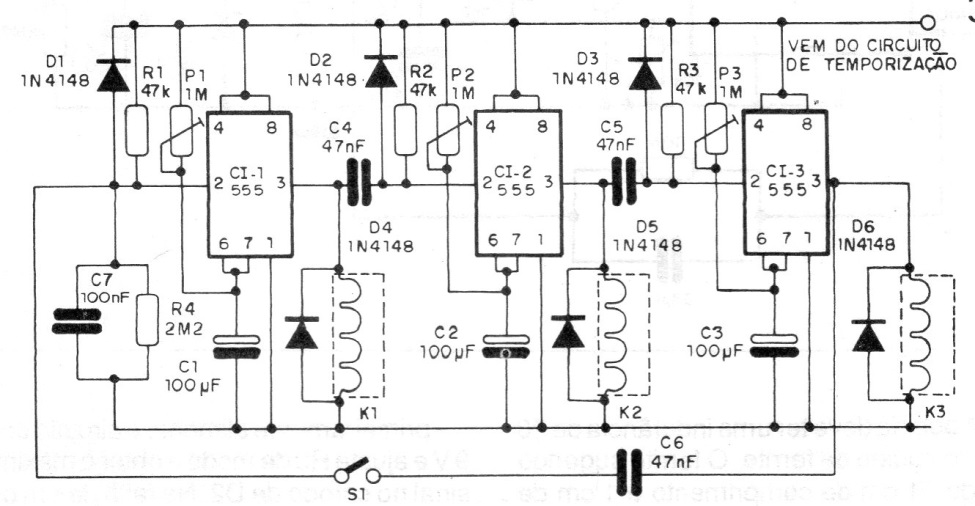

This circuit, already explored in other articles on this site, consists of a sequential timer in which each relay is activated for the time determined by the corresponding setting. The circuit is powered by 12 V which is the voltage used for the relay.


| Clique na imagem para ampliar |





N° of component
