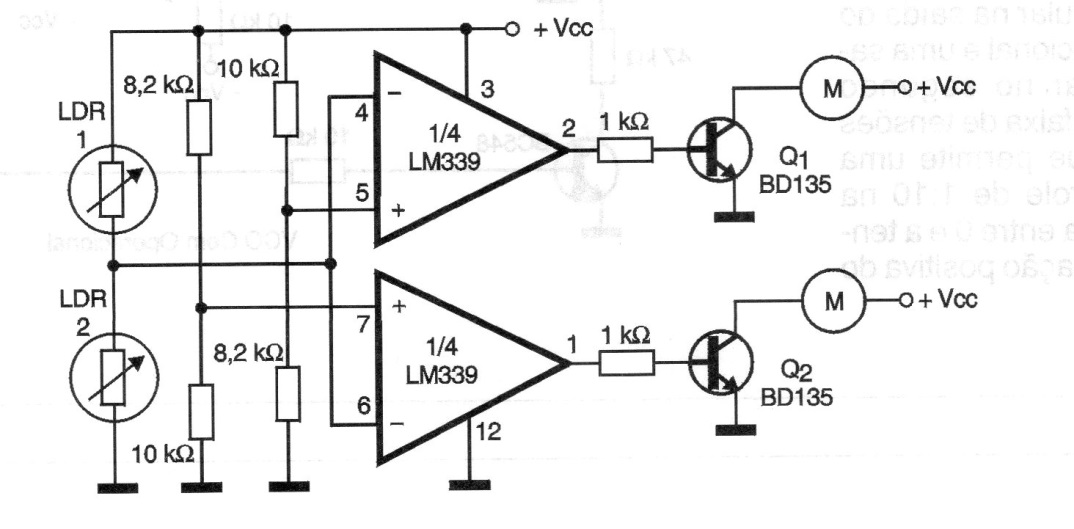

This circuit, found in a 2000 documentation, is used in simple artificial intelligence and robotic projects. In this case, using as sensors LDRs can implement a robot that follows the light or a light line. The circuit can also be found in many practical projects on this site. This version is for motors up to 500 mA.
