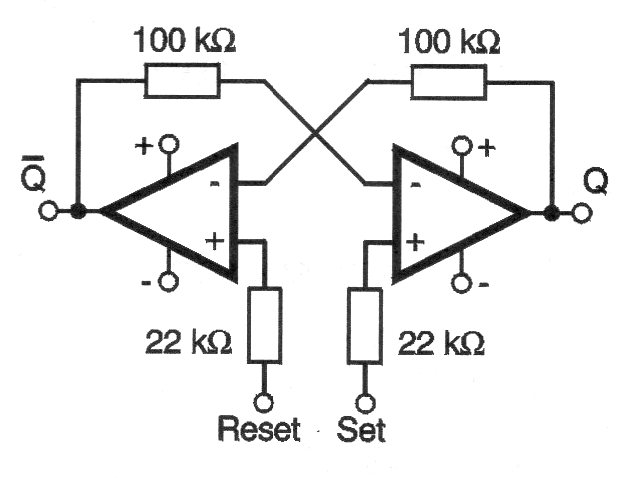

In the figure we have a traditional flip-flop configuration implemented with two operational amplifiers. The symmetrical 3 to 12 V supply depends on the used operational. For 741 the power supply should be from 6 to 12 V.
