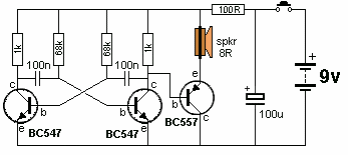

Siren (CB4726E)

Details: Written by: Newton C. Braga

This siren has already been presented in similar versions in other articles on the site, some with more power. The circuit is from recent English documentation and is battery powered.
