Level Indicator (CB4890E)

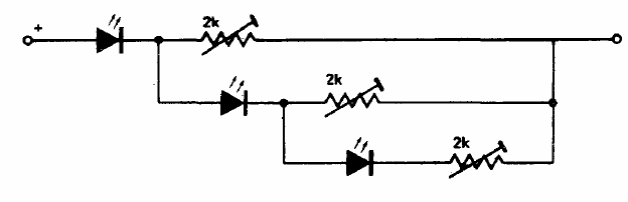

This 3-step level indicator uses only passive components. LEDs are common and trimpots can be 4k7 which a current commercial value.
