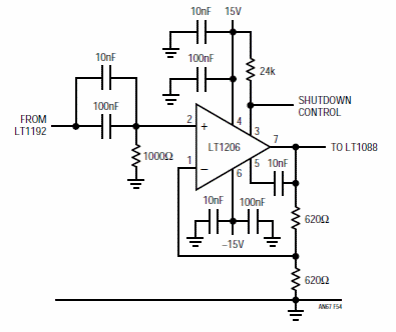

This buffer and driver is from the integrated circuit manual itself, the Linear Technology LT1206. The circuit can be sensor interfaced and has a flat response over a wide frequency range, requiring symmetrical power supply.
![](/images/stories/cir/214312432023_140643_0001.gif)
This buffer and driver is from the integrated circuit manual itself, the Linear Technology LT1206. The circuit can be sensor interfaced and has a flat response over a wide frequency range, requiring symmetrical power supply.
