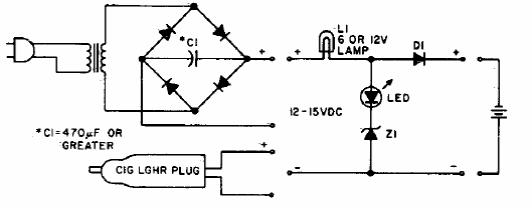

We found this automotive application circuit in an old American documentation. All components are current, which facilitates assembly. Bridge diodes are 1 A and 14 V transformer with at least 1 A.
