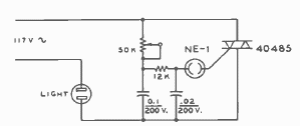

This is one of the possible triac power control configurations using as a trigger element a standard neon lamp. The circuit is from an old documentation. Modern equivalent triacs can be used.
