Electronic Dice (CB4877E)

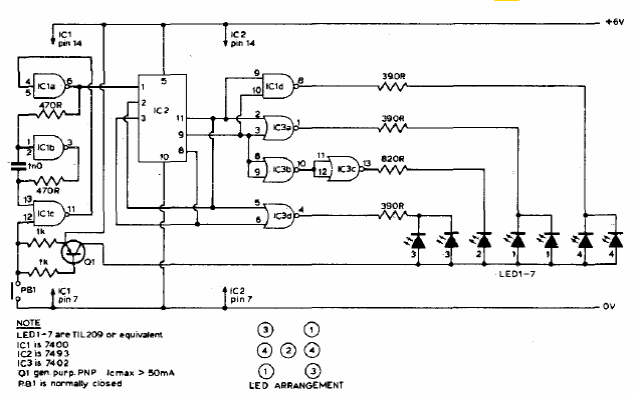

    This TTL dice was found in an old American 1980s documentation, but can still be easily assembled. It may actually serve as the basis for a similar microcontrolled project. In the figure we have the arrangement of the LEDs on the dice face.
