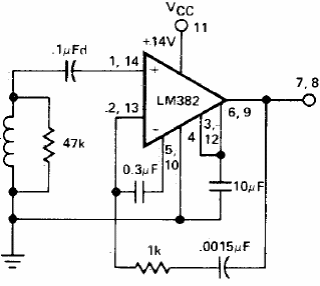

The configuration shown was found in a 1980s American book. The supply voltage is 14 V and the two-numbered pins refer to the two channels of the dual integrated circuit.
