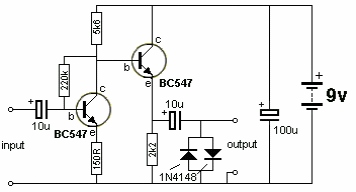

Guitar Fuzz (CB4724E)

Details: Written by: Newton C. Braga

Circuits similar to this can be found at various points on this site. This circuit is interspersed between the pickup and the amplifier input. Use batteries to avoid noise.
